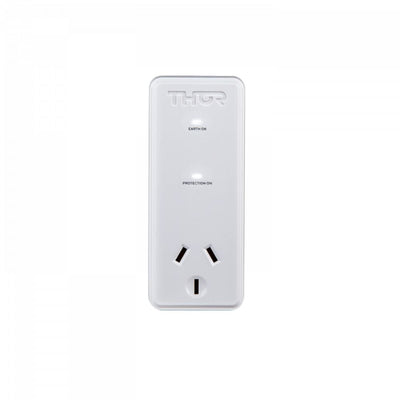

Thor Single Outlet White Goods Surge Protector With Filtration (A1W)

The Ultimate Protection

ALPHA 1 is the affordable way to have power protection for your valuable electrical equipment. The new slimline design now means you can have surge protection and filtration anywhere.
A unique feature for the Alpha A1D is the downward facing plug which allows your appliance to be closer to the wall while still being protected – e.g. behind a fridge, freezer, microwave or laundry appliance.
ALPHA 1 is the latest addition to the Thor Technologies product range and includes newly developed Correction Power Filter (CPF) technology.
The CPF has been exclusively designed for the Alpha series. The CPF is aimed at ensuring the power factor is at its maximum efficiency. This benefit means dirty power is not robbing your audio visual, Hi-Fi and computer equipment of its performance. The effects of unwanted dirty power or interference is reduced or eliminated.

• Unique Slimline Brushed Finish Housing
• Earth Detection LED
• Power LED
• Alarm Buzzer Which Detects if a Surge Circuit Is Damaged
• Flame Proof MOV
• Flame Retardant Housing
• Single Plug Outlet
• Downward Facing Plug

This Product is Designed to Protect the Following Types of Products:

• Fridge/Freezer
• Dishwasher
• Washing Machine
• Appliances

Product Features

• Single Protected Outlet
• EESS Registration Number: E2021043442
• Flame Proof MOV
• Slimline Design
• 1 Nanosecond Reaction Time
• Flame Retardant Housing
• Alarm Buzzer Detect if Circuit is Damaged
• Large Plug Adaptor
• 100k Connected Equipment Warranty
• 6 Year Replacement Warranty

Technical Specifications

• Product Code: A1W
• EESS Registration Number: E2021043442
• EESS Equipment Class: Level 3, Control or Conditioning Device - Level 3
• Supply Voltage 240/V AC 50/Hz
• Maximum Current Rating 10amps/2400 W
• Clamping/Let Through Voltage 510VAC
• Reaction Time Less Than 1 Nanosecond
• Maximum Energy Dissipation 2115 Joules (Equivalent to 705 Joules Using UL1449 Standard)
• Protection Modes (All 1 Outlets Protects on all 3 Conductors): Active/ Neutral, Active/Earth, Neutral/Earth
• Total Number Of Protected AC Outlets: 1
• Earth Potential Rise Protection
• Operating Conditions: Indoor/AC Mains
• Earth Leakage Range Less Than 1 Milli Amp
• Operating Temperatures: -10C/+60C
• Dimensions: 105mm(H) x 43mm(W) x 41mm(D)

Documentation

A1W - Thor Single Outlet White Goods Surge Protector - Brochure
