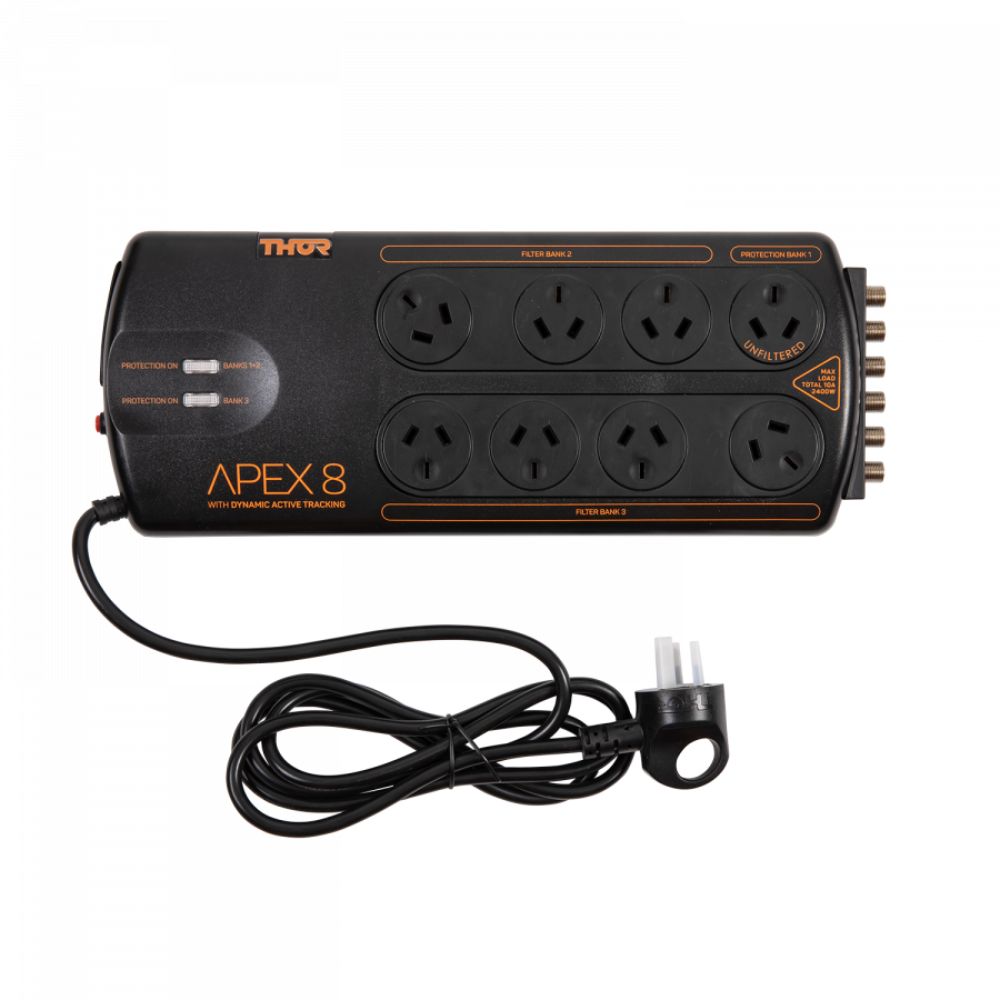

Thor 8 Outlet Surge Protector with Elite Filtration (A8)

A8+

Thor 8 Outlet Surge Protector with Elite Filtration (A8)

The Ultimate Protection

APEX™ 8 with unique Dynamic Active Tracking™ is the most comprehensive and advanced solution to protect your electronic equipment.
  • AV/TV Connection (3 In And 3 Out)
  • Bank 1 (1 Outlet): Surge Protection Only
  • Bank 2 (3 Outlets): Surge Protection And Filtering
  • Large Plug Adaptor
  • NBN Ready RJ 45 Data Protection (1 In And 1 Out)
  • Resettable Safety 10 Amp Circuit Breaker
  • Fireproof MOV
Fireproof MOV ensures the main protection components will not catch fire while protecting from dangerous surges. The choice of Fireproof components and the added flame retardant housing safeguards ensures your home and family will always be safe.
The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound. Can also improve computer gaming speeds and fix internet dropouts.

Inside The Brain

SmartBrain has a premium filter technology called Dynamic Active Tracking. This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices. There are 5 separate earth lines which is a hum/loop reducing feature. This feature stops component cross talk and ensures isolation between the 3 x AC Banks (1 x 1 outlet; 1 x 3 outlet; 1 x 4 outlet) as well as the antenna/F type and Data connections. True circuit isolation ensures best performance for all connected equipment.

This Product is Designed to Protect the Following Types of Products:

  • OLED/LCD TV
  • HiFi And Home Theatre
  • Active/Passive Speakers
  • Reducses Internet Dropouts
  • Computers
  • Printers And Scanners
  • Gaming Improves Speed

Product Features

  • 8 Protected Outlet
  • 3 Isolated Banks
  • Aerial Protection
  • Pay TV Protection
  • Flame Retardant Housing
  • Large Plug Adaptor
  • Data/Voice Protection NBN Compatible
  • 1.8m Cable Length
  • 6 Year Replacement Warranty

Technical Specifications

  • Product Code: A8
  • EESS Registration Number: E2020026337
  • EESS Equipment Class: Level 3, Outlet Device - Level 3
  • Supply Voltage 240/V AC 50/Hz
  • Maximum Current Rating 10amps/2400 W
  • Clamping Voltage 300VAC
  • Reaction Time Less Than 1 Nanosecond
  • Transient Spike Impulse Current 208,000 Amps (Equivalent to 52,000 Amps Using UL1449 Standard)
  • Maximum Energy Dissipation 5535 Joules (Equivalent to 2050 Joules Using UL1449 Standard)
  • Protection Modes (All 8 Outlets Protects On All 3 Conductors): Active/ Neutral, Active/Earth, Neutral/Earth
  • EMI/RFI Noise Reduction Filter. Dynamic Active TrackingTM Incorporating 38 Separate Protection Components in 3 Cascading Circuits
  • Total Number Of Protected AC Outlets: 8
  • Number Of Multi-stage Filter Banks: 2
  • Number Of Dedicated Outlets: 4+3+1
  • Earth Potential Rise Protection
  • Cable TV ‘F’ Type Connection: 3 In and 3 Out
  • Operating Conditions: Indoor/AC Mains
  • Earth Leakage Range Less Than 1 Milli Amp
  • Operating Temperatures: -10C/+60C
  • Cable Length: 1.8m
  • Dimensions: 335mm(L) x 130mm(W) x 50mm(D)

Documentation

A8 - Thor 8 Outlet Surge Protector with Elite Filtration - Brochure
